Program 6:- Implement and study the performance of CDMA on NS2/NS3 (Using stack called Call net)
or equivalent environment.

Program Code

#set  parameters
  set stop 100	;# Stop time.

  # Topology
  set type umts ;#type of link


  # AQM parameters
  set minth 30
  set maxth 0
  set adaptive 1 ;# 1 for Adaptive RED, 0 for plain RED


  # Traffic generation.
  set flows 0 ;# number of long-lived TCP flows
  set window 30 ;# window for long-lived traffic

  # Plotting statics.
  set opt(wrap) 100 ;# wrap plots?
  set opt(srcTrace) is ;# where to plot traffic
  set opt(dstTrace) bs2 ;# where to plot traffic

  #default downlink bandwidth in bps
  set bwDL(umts) 384000


  #default downlink propagation delay in seconds
  set propDL(umts) .150


  set ns [new Simulator]

  set tf [open Mlab6.tr w]
  $ns trace-all $tf

  set nodes(is) [$ns node]
  set nodes(ms) [$ns node]
  set nodes(bs1) [$ns node]
  set nodes(bs2) [$ns node]
  set nodes(lp) [$ns node]

  proc cell_topo {} {
  global ns nodes
  $ns duplex-link $nodes(lp) $nodes(bs1) 3Mbps 10ms DropTail
  $ns duplex-link $nodes(bs1) $nodes(ms) 1 1 RED
  $ns duplex-link $nodes(ms) $nodes(bs2) 1 1 RED
  $ns duplex-link $nodes(bs2) $nodes(is) 3Mbps 50ms DropTail
  puts " umts Cell Topology"
  }

  proc set_link_para {t} {
  global ns nodes bwDL propDL
  $ns bandwidth $nodes(bs1) $nodes(ms) $bwDL($t) duplex
  $ns bandwidth $nodes(bs2) $nodes(ms) $bwDL($t) duplex

  $ns delay $nodes(bs1) $nodes(ms) $propDL($t) duplex
  $ns delay $nodes(bs2) $nodes(ms) $propDL($t) duplex

  $ns queue-limit $nodes(bs1) $nodes(ms) 20
  $ns queue-limit $nodes(bs2) $nodes(ms) 20
  }

  # RED and TCP parameters
  Queue/RED set adaptive_ $adaptive
  Queue/RED set thresh_ $minth
  Queue/RED set maxthresh_ $maxth
  Agent/TCP set window_ $window

  #Create topology
  switch $type {
  umts {cell_topo}
  }


  set_link_para $type
  $ns insert-delayer $nodes(ms) $nodes(bs1) [new Delayer]
  $ns insert-delayer $nodes(ms) $nodes(bs2) [new Delayer]

  # Set up forward TCP connection
  if {$flows == 0} {
  set tcp1 [$ns create-connection TCP/Sack1 $nodes(is) TCPSink/Sack1 $nodes(lp) 0]
  set ftp1 [[set tcp1] attach-app FTP]
  $ns at 0.8 "[set ftp1] start"
  }



  proc stop {} {
  global nodes opt tf
  set wrap $opt(wrap)
  set sid [$nodes($opt(srcTrace)) id]
  set did [$nodes($opt(dstTrace)) id]

  set a "Mlab6.tr"

  set GETRC "/var/cn/ns-allinone-2.35/ns-2.35/bin/getrc"
  set RAW2XG "/var/cn/ns-allinone-2.35/ns-2.35/bin/raw2xg"

  exec $GETRC -s $sid -d $did -f 0 Mlab6.tr | \
  $RAW2XG -s 0.01 -m $wrap -r > plot6.xgr

  exec $GETRC -s $did -d $sid -f 0 Mlab6.tr | \
  $RAW2XG -a -s 0.01 -m $wrap >> plot6.xgr

  exec xgraph -x time -y packets plot6.xgr &
  exit 0
  }
  $ns at $stop "stop"
$ns run

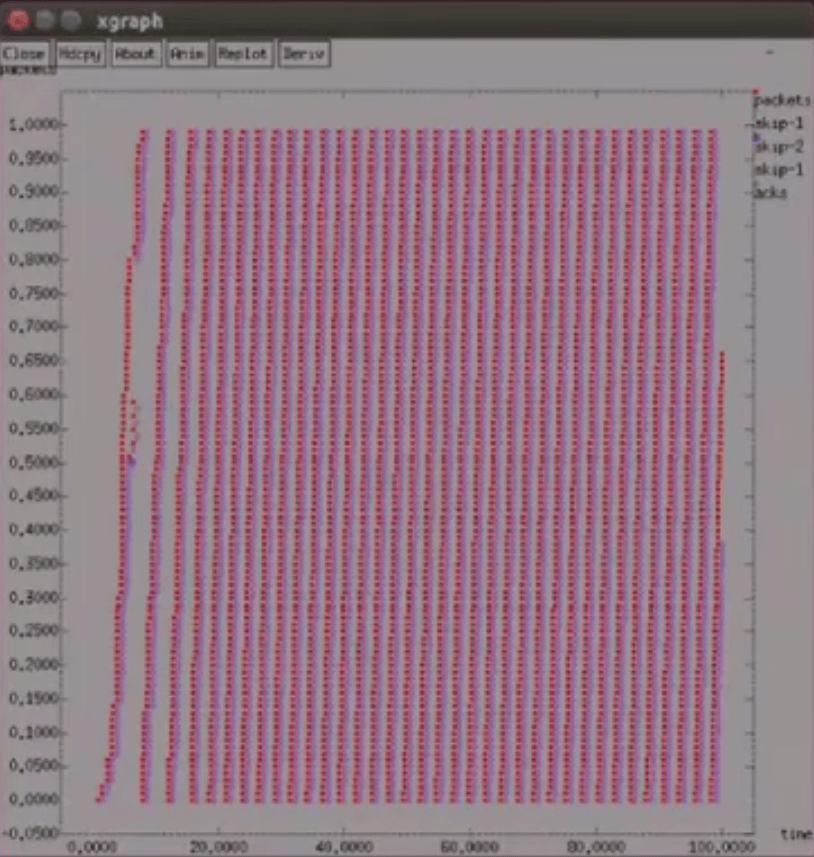

Program Output
